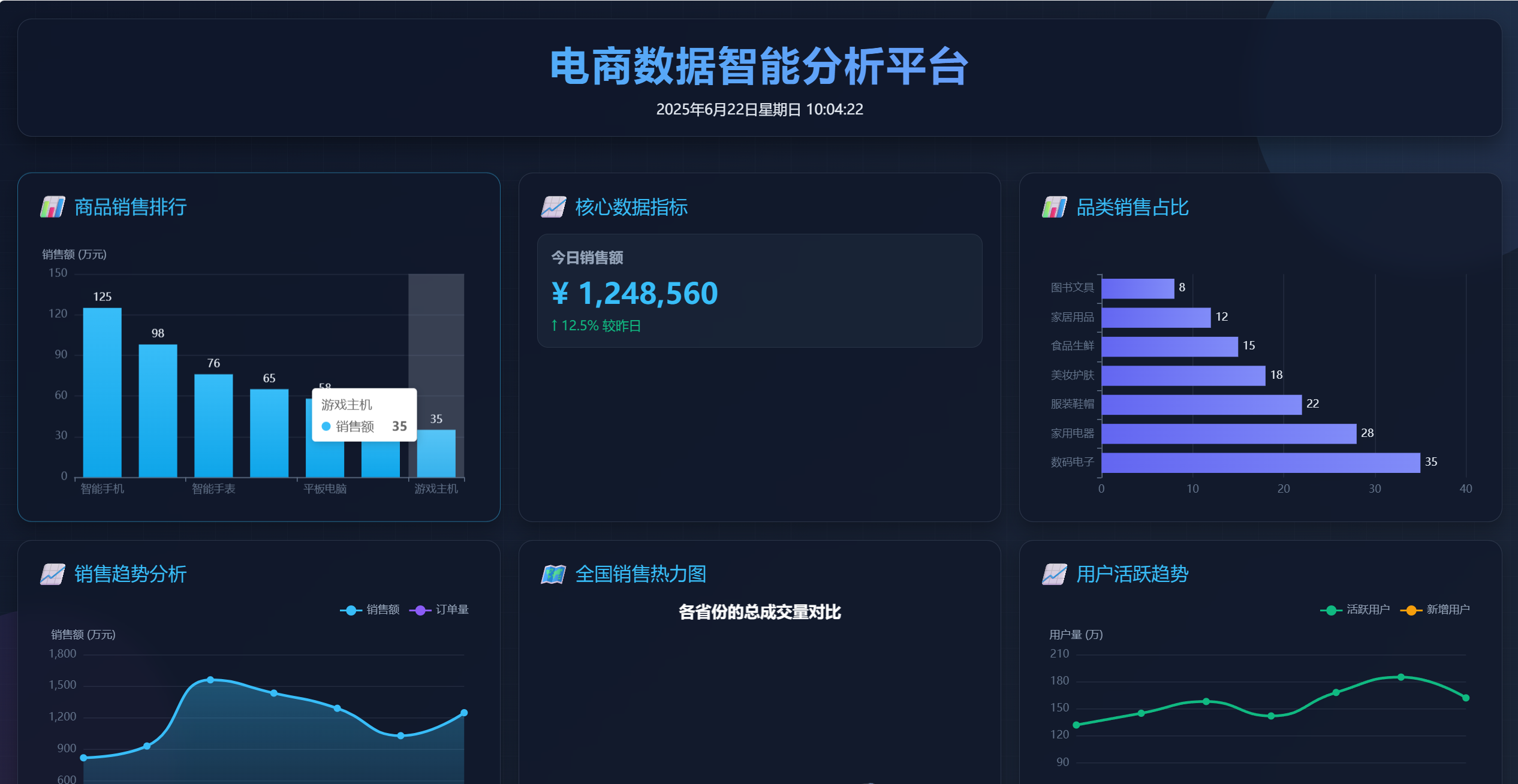

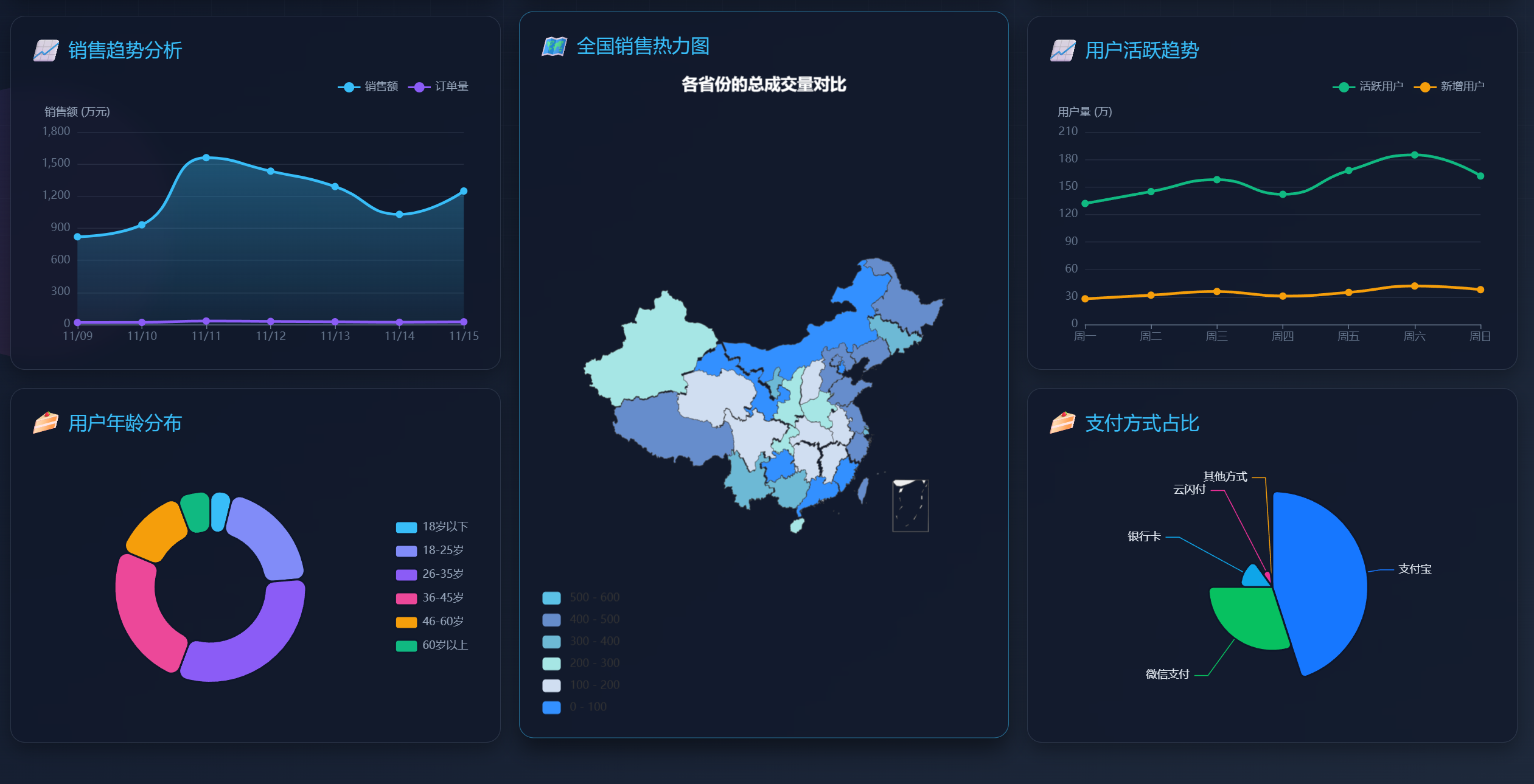

作为大数据的学生，每次想实现前端数据可视化大屏就头疼，不会前端就很烦，所以这次特定不断调教AI，再加上自己不断的改改改，终于花了一个下午改成了一个还过得去的可视化大屏，所以直接把源码分享在这里了，但是要自己导入echarts组件
index.html页面
<!DOCTYPE html><html lang="zh-CN"><head> <meta charset="UTF-8"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>电商数据可视化大屏</title> <script src="./StyleUtils/js/utils/echarts.min.js"></script> <script src="./StyleUtils/map/china.js"></script> <script src="./StyleUtils/js/utils/jQuery.js"></script> <link rel="stylesheet" href="style.css"></head><body><div class="decoration decoration-1"></div><div class="decoration decoration-2"></div><div class="grid-line"></div><div class="dashboard"> <div class="header"> <h1>电商数据智能分析平台</h1> <div id="timeDisplay"></div> </div> <!-- 第二行 --> <div class="card"> <div class="card-title"> <i>?</i> 商品销售排行 </div> <div class="chart-container" id="barChart1"></div> </div> <div class="card"> <div class="card-title"> <i>?</i> 核心数据指标 </div> <div class="stats-container"> <div class="stat-card"> <h3>今日销售额</h3> <div class="stat-value">¥ 1,248,560</div> <div class="stat-trend trend-up">↑ 12.5% 较昨日</div> </div> <!-- <div class="stat-card">--> <!-- <h3>订单完成量</h3>--> <!-- <div class="stat-value">24,856</div>--> <!-- <div class="stat-trend trend-up">↑ 8.3% 较昨日</div>--> <!-- </div>--> <!-- <div class="stat-card">--> <!-- <h3>用户访问量</h3>--> <!-- <div class="stat-value">186,423</div>--> <!-- <div class="stat-trend trend-down">↓ 3.2% 较昨日</div>--> <!-- </div>--> <!-- <div class="stat-card">--> <!-- <h3>转化率</h3>--> <!-- <div class="stat-value">13.4%</div>--> <!-- <div class="stat-trend trend-up">↑ 1.7% 较昨日</div>--> <!-- </div>--> </div> </div> <div class="card"> <div class="card-title"> <i>?</i> 品类销售占比 </div> <div class="chart-container" id="barChart2"></div> </div> <!-- 第三行 --> <div class="card"> <div class="card-title"> <i>?</i> 销售趋势分析 </div> <div class="chart-container" id="lineChart1"></div> </div> <div class="card map-container"> <div class="card-title"> <i>?️</i> 全国销售热力图 </div> <div class="chart-container" id="mapChart"></div> </div> <div class="card"> <div class="card-title"> <i>?</i> 用户活跃趋势 </div> <div class="chart-container" id="lineChart2"></div> </div> <!-- 第四行 --> <div class="card"> <div class="card-title"> <i>?</i> 用户年龄分布 </div> <div class="chart-container" id="pieChart1"></div> </div> <div class="card"> <div class="card-title"> <i>?</i> 支付方式占比 </div> <div class="chart-container" id="pieChart2"></div> </div> <div class="footer"> <p>数据更新时间: 2023年11月15日 14:28:35 | © 2023 电商数据平台 版权所有</p> </div></div><script src="style.js"></script></body></html>index.css
* { margin: 0; padding: 0; box-sizing: border-box; font-family: 'Microsoft YaHei', sans-serif;}body { background: linear-gradient(135deg, #0f172a, #1e293b); color: #e2e8f0; min-height: 100vh; padding: 20px; overflow-x: hidden;}.dashboard { display: grid; grid-template-columns: repeat(3, 1fr); grid-template-rows: auto; gap: 20px; max-width: 1920px; margin: 0 auto;}.header { grid-column: 1 / span 3; background: rgba(15, 23, 42, 0.8); border-radius: 16px; padding: 20px; text-align: center; border: 1px solid rgba(100, 116, 139, 0.3); box-shadow: 0 10px 25px rgba(0, 0, 0, 0.4); backdrop-filter: blur(10px); margin-bottom: 20px;}.header h1 { font-size: 2.8rem; margin-bottom: 10px; background: linear-gradient(90deg, #38bdf8, #818cf8); -webkit-background-clip: text; background-clip: text; color: transparent; letter-spacing: 2px;}.header p { font-size: 1.2rem; color: #94a3b8; max-width: 800px; margin: 0 auto;}.card { background: rgba(15, 23, 42, 0.7); border-radius: 16px; border: 1px solid rgba(100, 116, 139, 0.3); padding: 20px; box-shadow: 0 8px 20px rgba(0, 0, 0, 0.3); backdrop-filter: blur(10px); transition: transform 0.3s ease, box-shadow 0.3s ease; height: 100%; display: flex; flex-direction: column;}.card:hover { transform: translateY(-5px); box-shadow: 0 12px 25px rgba(0, 0, 0, 0.5); border-color: rgba(56, 189, 248, 0.5);}.card-title { font-size: 1.3rem; margin-bottom: 15px; color: #38bdf8; display: flex; align-items: center; gap: 10px;}.card-title i { font-size: 1.5rem;}.chart-container { flex: 1; min-height: 300px;}.stats-container { display: grid; grid-template-columns: 1fr; gap: 15px;}.stat-card { background: rgba(30, 41, 59, 0.6); border-radius: 12px; padding: 15px; display: flex; flex-direction: column; justify-content: center; border: 1px solid rgba(100, 116, 139, 0.2);}.stat-card h3 { font-size: 1rem; color: #94a3b8; margin-bottom: 8px;}.stat-value { font-size: 2rem; font-weight: bold; color: #38bdf8;}.stat-trend { display: flex; align-items: center; font-size: 0.9rem; margin-top: 5px;}.trend-up { color: #10b981;}.trend-down { color: #ef4444;}.map-container { grid-row: 3 / span 2; grid-column: 2;}.footer { grid-column: 1 / span 3; text-align: center; padding: 20px; font-size: 0.9rem; color: #64748b; margin-top: 20px;}/* 响应式调整 */@media (max-width: 1200px) { .dashboard { grid-template-columns: 1fr 1fr; } .header, .footer { grid-column: 1 / span 2; } .map-container { grid-row: auto; grid-column: 1 / span 2; }}@media (max-width: 768px) { .dashboard { grid-template-columns: 1fr; } .header, .footer { grid-column: 1; } .map-container { grid-column: 1; }}/* 装饰元素 */.decoration { position: absolute; z-index: -1; opacity: 0.1;}.decoration-1 { width: 400px; height: 400px; border-radius: 50%; background: linear-gradient(135deg, #38bdf8, #818cf8); top: -100px; right: -100px;}.decoration-2 { width: 300px; height: 300px; border-radius: 50%; background: linear-gradient(135deg, #8b5cf6, #ec4899); bottom: -100px; left: -100px;}.grid-line { position: absolute; top: 0; left: 0; width: 100%; height: 100%; background: linear-gradient(to right, rgba(100, 116, 139, 0.05) 1px, transparent 1px), linear-gradient(to bottom, rgba(100, 116, 139, 0.05) 1px, transparent 1px); background-size: 40px 40px; z-index: -1;}index.js（我自己加了一个后端获取的通用方法，到时根据自己需求稍微改改代码就可以了，数据都是静态数据，后续有时间我就更新怎么从后端获取数据，然后进行数据显示）
// 通用数据获取async function fetchData(url, params = {}) { try { const response = await fetch(url, { method: 'GET', headers: { 'Content-Type': 'application/json', }, body: JSON.stringify(params), }) if (!response.ok) { throw new Error(`HTTP error! status: ${response.status}`); } return await response.json(); } catch (error) { console.error(error); return null; }}// 初始化所有图表document.addEventListener('DOMContentLoaded', function() { // 更新时间显示 function updateTime() { const now = new Date(); const timeDisplay = document.getElementById('timeDisplay'); const options = { year: 'numeric', month: 'long', day: 'numeric', weekday: 'long', hour: '2-digit', minute: '2-digit', second: '2-digit', hour12: false }; timeDisplay.textContent = now.toLocaleDateString('zh-CN', options); } // 初始化时间并设置定时器 updateTime(); setInterval(updateTime, 1000); function initOption() { bar1() bar2() line1() line2() pie1() pie2() map() } // 商品销售排行 function bar1() { const barChart1 = echarts.init(document.getElementById('barChart1')); const option = { tooltip: { trigger: 'axis', axisPointer: { type: 'shadow' } }, grid: { left: '3%', right: '4%', bottom: '3%', top: '15%', containLabel: true }, xAxis: { type: 'category', data: ['智能手机', '笔记本电脑', '智能手表', '蓝牙耳机', '平板电脑', '相机', '游戏主机'], axisLine: { lineStyle: { color: '#64748b' } } }, yAxis: { type: 'value', name: '销售额 (万元)', nameTextStyle: { color: '#94a3b8' }, axisLine: { lineStyle: { color: '#64748b' } }, splitLine: { lineStyle: { color: 'rgba(100, 116, 139, 0.2)' } } }, series: [{ name: '销售额', type: 'bar', data: [125, 98, 76, 65, 58, 42, 35], itemStyle: { color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [ { offset: 0, color: '#38bdf8' }, { offset: 1, color: '#0ea5e9' } ]) }, label: { show: true, position: 'top', color: '#e2e8f0' } }] }; barChart1.setOption(option); } // 品类销售占比 function bar2() { const barChart2 = echarts.init(document.getElementById('barChart2')); const option = { tooltip: { trigger: 'axis', axisPointer: { type: 'shadow' } }, grid: { left: '3%', right: '4%', bottom: '3%', top: '15%', containLabel: true }, xAxis: { type: 'value', axisLine: { lineStyle: { color: '#64748b' } }, splitLine: { lineStyle: { color: 'rgba(100, 116, 139, 0.2)' } } }, yAxis: { type: 'category', data: ['数码电子', '家用电器', '服装鞋帽', '美妆护肤', '食品生鲜', '家居用品', '图书文具'], axisLine: { lineStyle: { color: '#64748b' } } }, series: [{ name: '占比', type: 'bar', data: [35, 28, 22, 18, 15, 12, 8], itemStyle: { color: new echarts.graphic.LinearGradient(1, 0, 0, 0, [ { offset: 0, color: '#818cf8' }, { offset: 1, color: '#6366f1' } ]) }, label: { show: true, position: 'right', color: '#e2e8f0' } }] } barChart2.setOption(option); } // 销售趋势分析 function line1() { const lineChart1 = echarts.init(document.getElementById('lineChart1')); const option = { tooltip: { trigger: 'axis' }, legend: { data: ['销售额', '订单量'], textStyle: { color: '#94a3b8' }, right: 10, top: 0 }, grid: { left: '3%', right: '4%', bottom: '3%', top: '20%', containLabel: true }, xAxis: { type: 'category', boundaryGap: false, data: ['11/09', '11/10', '11/11', '11/12', '11/13', '11/14', '11/15'], axisLine: { lineStyle: { color: '#64748b' } } }, yAxis: { type: 'value', name: '销售额 (万元)', nameTextStyle: { color: '#94a3b8' }, axisLine: { lineStyle: { color: '#64748b' } }, splitLine: { lineStyle: { color: 'rgba(100, 116, 139, 0.2)' } } }, series: [ { name: '销售额', type: 'line', data: [820, 932, 1560, 1434, 1290, 1030, 1248], smooth: true, lineStyle: { width: 3, color: '#38bdf8' }, symbol: 'circle', symbolSize: 8, itemStyle: { color: '#38bdf8' }, areaStyle: { color: new echarts.graphic.LinearGradient(0, 0, 0, 1, [ { offset: 0, color: 'rgba(56, 189, 248, 0.5)' }, { offset: 1, color: 'rgba(56, 189, 248, 0.1)' } ]) } }, { name: '订单量', type: 'line', yAxisIndex: 0, data: [18.2, 19.5, 32.4, 28.6, 25.3, 20.8, 24.8], smooth: true, lineStyle: { width: 3, color: '#8b5cf6' }, symbol: 'circle', symbolSize: 8, itemStyle: { color: '#8b5cf6' } } ] } lineChart1.setOption(option); } // 用户活跃趋势 function line2() { const lineChart2 = echarts.init(document.getElementById('lineChart2')); const option = { tooltip: { trigger: 'axis' }, legend: { data: ['活跃用户', '新增用户'], textStyle: { color: '#94a3b8' }, right: 10, top: 0 }, grid: { left: '3%', right: '4%', bottom: '3%', top: '20%', containLabel: true }, xAxis: { type: 'category', boundaryGap: false, data: ['周一', '周二', '周三', '周四', '周五', '周六', '周日'], axisLine: { lineStyle: { color: '#64748b' } } }, yAxis: { type: 'value', name: '用户量 (万)', nameTextStyle: { color: '#94a3b8' }, axisLine: { lineStyle: { color: '#64748b' } }, splitLine: { lineStyle: { color: 'rgba(100, 116, 139, 0.2)' } } }, series: [ { name: '活跃用户', type: 'line', data: [132, 145, 158, 142, 168, 185, 162], smooth: true, lineStyle: { width: 3, color: '#10b981' }, symbol: 'circle', symbolSize: 8, itemStyle: { color: '#10b981' } }, { name: '新增用户', type: 'line', data: [28, 32, 36, 31, 35, 42, 38], smooth: true, lineStyle: { width: 3, color: '#f59e0b' }, symbol: 'circle', symbolSize: 8, itemStyle: { color: '#f59e0b' } } ] } lineChart2.setOption(option); } // 用户年龄分布 function pie1() { const pieChart1 = echarts.init(document.getElementById('pieChart1')); const option = { tooltip: { trigger: 'item', formatter: '{a} <br/>{b}: {c} ({d}%)' }, legend: { orient: 'vertical', right: 10, top: 'center', textStyle: { color: '#94a3b8' } }, series: [ { name: '年龄分布', type: 'pie', radius: ['40%', '70%'], center: ['40%', '50%'], avoidLabelOverlap: false, itemStyle: { borderRadius: 10, borderColor: '#0f172a', borderWidth: 2 }, label: { show: false, position: 'center' }, emphasis: { label: { show: true, fontSize: '18', fontWeight: 'bold' } }, labelLine: { show: false }, data: [ { value: 28, name: '18岁以下', itemStyle: { color: '#38bdf8' } }, { value: 145, name: '18-25岁', itemStyle: { color: '#818cf8' } }, { value: 235, name: '26-35岁', itemStyle: { color: '#8b5cf6' } }, { value: 187, name: '36-45岁', itemStyle: { color: '#ec4899' } }, { value: 95, name: '46-60岁', itemStyle: { color: '#f59e0b' } }, { value: 42, name: '60岁以上', itemStyle: { color: '#10b981' } } ] } ] } pieChart1.setOption(option); } // 支付方式占比 function pie2() { const pieChart2 = echarts.init(document.getElementById('pieChart2')); const option = { tooltip: { trigger: 'item', formatter: '{a} <br/>{b}: {c} ({d}%)' }, series: [ { name: '支付方式', type: 'pie', radius: '70%', center: ['50%', '50%'], roseType: 'radius', itemStyle: { borderRadius: 5, borderColor: '#0f172a', borderWidth: 2 }, label: { color: '#e2e8f0' }, data: [ { value: 45, name: '支付宝', itemStyle: { color: '#1677ff' } }, { value: 30, name: '微信支付', itemStyle: { color: '#07c160' } }, { value: 15, name: '银彳卡', itemStyle: { color: '#0ea5e9' } }, { value: 8, name: '云闪付', itemStyle: { color: '#eb2f96' } }, { value: 2, name: '其他方式', itemStyle: { color: '#f59e0b' } } ] } ] } pieChart2.setOption(option); } // 随机数 function randomData() { return Math.round(Math.random() * 500); } // 全国销售热力图 function map() { const mapChart = echarts.init(document.getElementById('mapChart')); const mydata = [ {name: '北京',value: randomData() },{name: '天津',value: randomData() }, {name: '上海',value: randomData() },{name: '重庆',value: randomData() }, {name: '河北',value: randomData() },{name: '河南',value: randomData() }, {name: '云南',value: randomData() },{name: '辽宁',value: randomData() }, {name: '黑龙江',value: randomData() },{name: '湖南',value: randomData()}, {name: '安徽',value: randomData() },{name: '山东',value: randomData() }, {name: '新疆',value: randomData() },{name: '江苏',value: randomData() }, {name: '浙江',value: randomData() },{name: '江西',value: randomData() }, {name: '湖北',value: randomData() },{name: '广西',value: randomData() }, {name: '甘肃',value: randomData() },{name: '山西',value: randomData() }, {name: '内蒙古',value: randomData() },{name: '陕西',value: randomData()}, {name: '吉林',value: randomData() },{name: '福建',value: randomData() }, {name: '贵州',value: randomData() },{name: '广东',value: randomData() }, {name: '青海',value: randomData() },{name: '西藏',value: randomData() }, {name: '四川',value: randomData() },{name: '宁夏',value: randomData() }, {name: '海南',value: randomData() },{name: 't湾',value: randomData() }, {name: '香港',value: randomData() },{name: '傲门',value: randomData() } ]; const option = { //backgroundColor: '#FFFFFF', // 标题 title: { text: '各省份的总成交量对比', textStyle:{color:'#fff'}, //subtext: '纯属虚构', x:'center', show: true }, // 提示框 tooltip : { trigger: 'item' }, visualMap: { show : true, x: 'left', y: 'bottom', //layoutCenter:['30%','30%'], splitList: [ {start: 500, end:600},{start: 400, end: 500}, {start: 300, end: 400},{start: 200, end: 300}, {start: 100, end: 200},{start: 0, end: 100}, ], // color: ['#ff0', '#ffff00', '#0E94EB','#6FBCF0', '#F0F06F', '#00CC00'] color:['#5bc2e7', '#6980c5', '#70dfdf', '#f7f1ee', '#3390FF'] }, series: [{ name: '各省份的总成交量对比', type: 'map', mapType: 'china', label: { normal: { show: false }, emphasis: { show: false } }, data:mydata }] }; mapChart.setOption(option); } initOption() // 响应式调整 window.addEventListener('resize', function() { bar1.resize(); bar2.resize(); line1.resize(); mapChart.resize(); lineChart2.resize(); pieChart1.resize(); pieChart2.resize(); });});都能完美实现，没实现成功的看看是否组件导入没，注意啊，这不是vue项目，是纯种的html，嘻嘻。最后实现的效果可能页面太大了，最好都是一页将所有显示出来，所以会前端的大佬可以自己修改，不会前端那就只能让AI改了（我就是）
